Lateral Tee – Cangzhou Huairong Pipeline Equipment Co., Ltd.

PRODUCT PARAMETERS

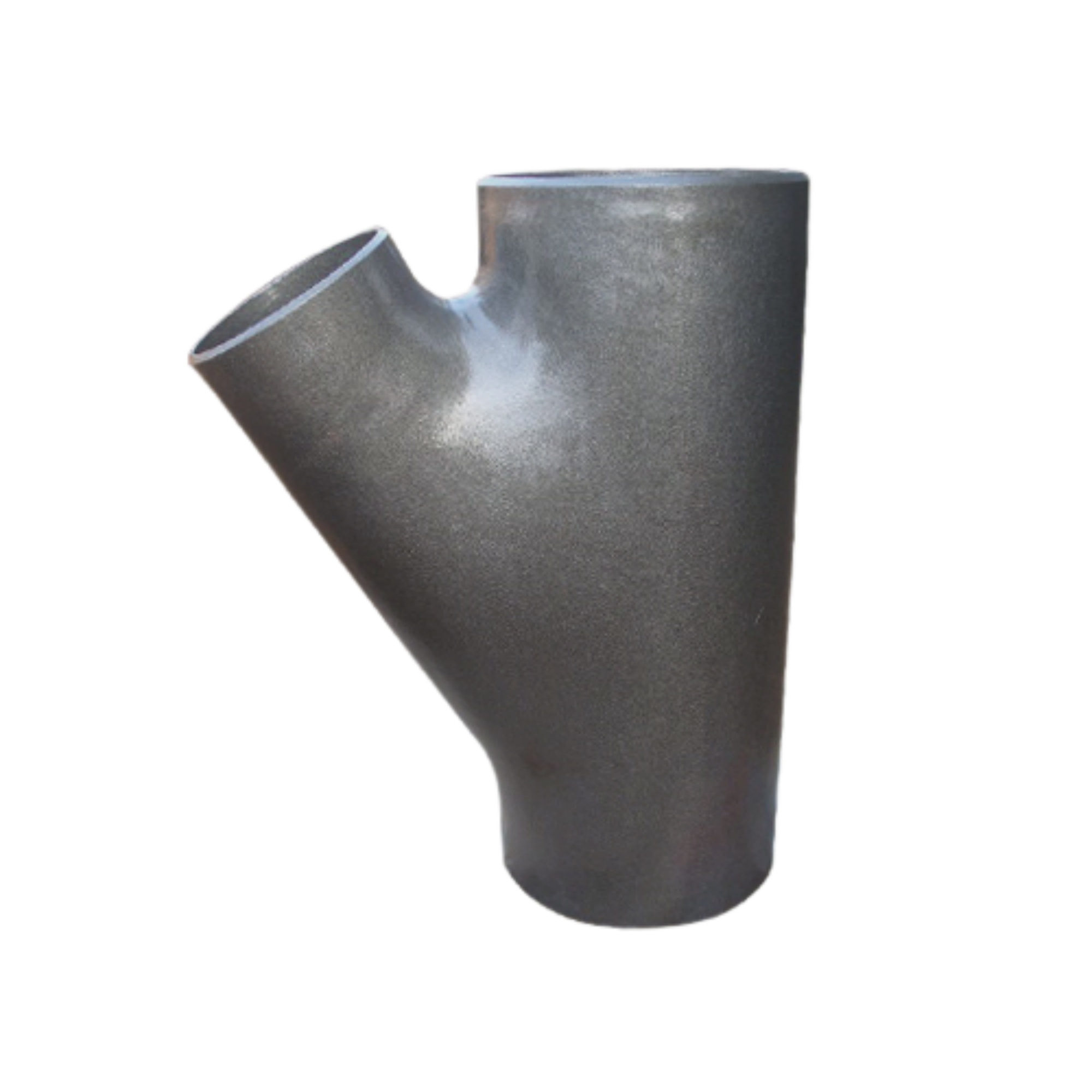

The Lateral Tee is a core piping fitting designed for three-way branching or merging at a non-right angle within a pipeline system. The branch outlet is positioned at an inclined angle (commonly 45°) relative to the main pipe, providing smoother flow transitions.

This design significantly reduces fluid resistance and vortex losses, effectively minimizing pipeline vibration. It is suitable for harsh industrial environments involving high temperature, high pressure, and corrosive media, and supports custom manufacturing.

Application Fields: Widely used in petroleum, chemical, long-distance oil and gas pipelines, power and energy, metallurgy, shipbuilding, pharmaceutical, heating systems, and other industries. It is ideal for demanding applications involving steam, petroleum products, gases, flammable and explosive media, and corrosive substances, especially suitable for high-flow transportation scenarios requiring precise fluid resistance control and reduced pipeline impact.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Item	Specification
Product Size:	DN15–DN1200 (1/2″–48″) and other common specifications, customizable
Pressure Rating	2mm–50mm / SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN
Manufacturing Standards	Compliant with GB, ANSI, DIN, JIS and other international standards
Material	Carbon steel, stainless steel, alloy steel, pipeline steel, low-temperature steel, duplex steel, etc.
Surface Treatment	Pickling and passivation, anti-rust oil coating, painting, hot-dip galvanizing, sandblasting, etc., as per customer requirements
Origin	China
Connection Type	Butt-welded
Temperature Range	-50℃ ~ +450℃ (specific temperature resistance depends on material and application conditions)

FAQs

What types of products can we offer?
