Reducing Tee – Cangzhou Huairong Pipeline Equipment Co., Ltd.

PRODUCT PARAMETERS

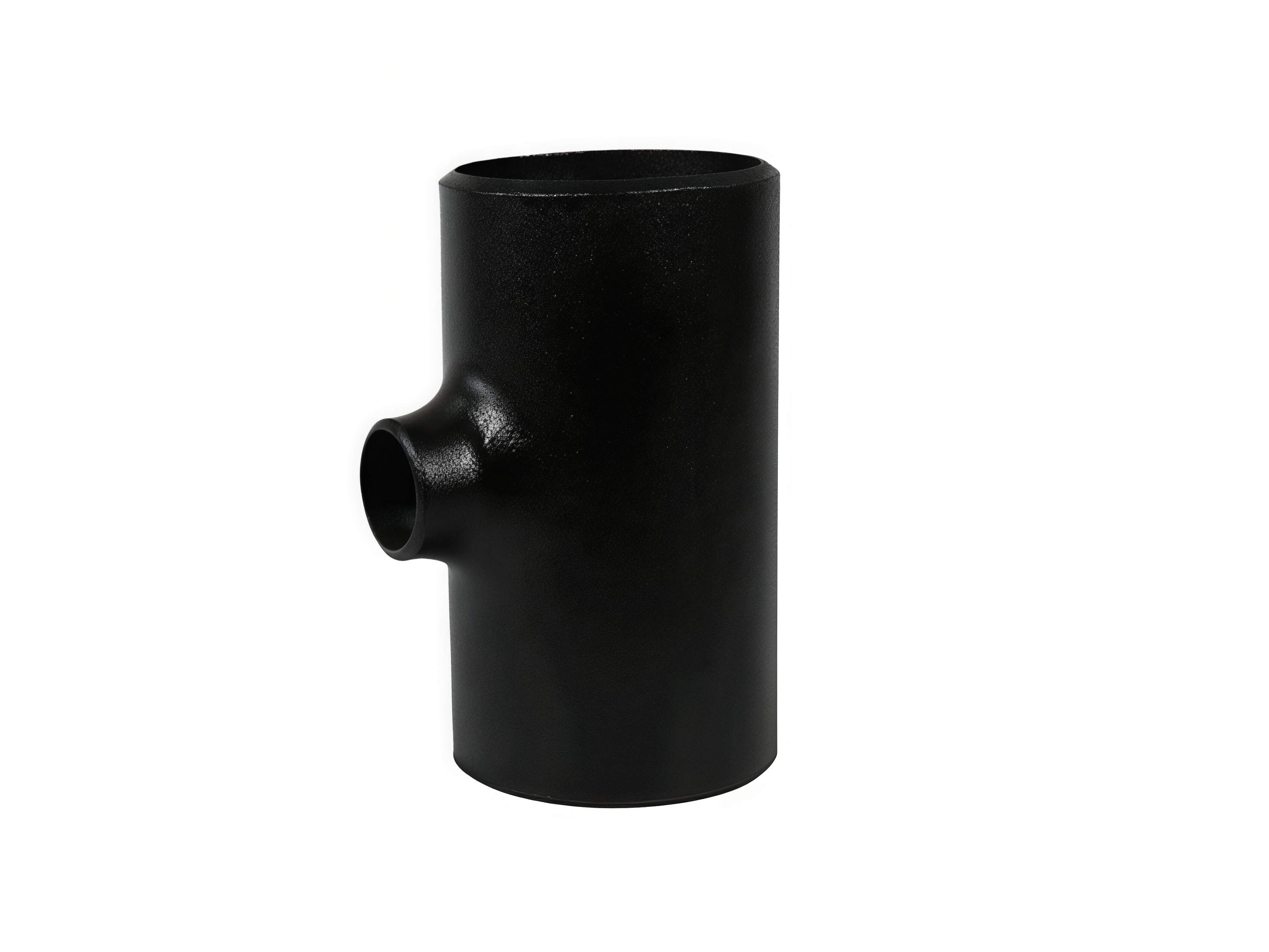

The Reducing Tee is a core piping fitting designed to achieve three-way branching or merging within a pipeline system. The branch outlet has a different diameter from the main outlet, enabling flow distribution and convergence between pipelines of varying sizes.

It ensures a smooth transition for fluids at the branch point and is suitable for various industrial conditions involving high temperature, high pressure, and corrosive media. Custom manufacturing is supported.

Application Fields: Widely used in petroleum, chemical, oil and gas transportation, power and energy, metallurgy, shipbuilding, pharmaceutical, heating systems, and long-distance pipelines. Suitable for demanding applications involving steam, petroleum products, gases, flammable and explosive media, and corrosive substances, especially ideal for scenarios requiring diameter-changing flow distribution or convergence in piping systems.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Item	Specification
roduct Size	DN15–DN1200 (1/2″–48″) and other common specifications, customizable
Pressure Rating	2mm–50mm / SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN
Manufacturing Standards	Compliant with GB, ANSI, DIN, JIS and other international standards
Material	Carbon steel, stainless steel, alloy steel, pipeline steel, low-temperature steel, duplex steel, etc.
Surface Treatment	Pickling and passivation, anti-rust oil coating, painting, hot-dip galvanizing, sandblasting, etc., as per customer requirements
Origin	China
Connection Type	Butt-welded
Temperature Range	-50℃ ~ +450℃ (specific temperature resistance depends on material and application conditions)
