PRODUCT PARAMETERS

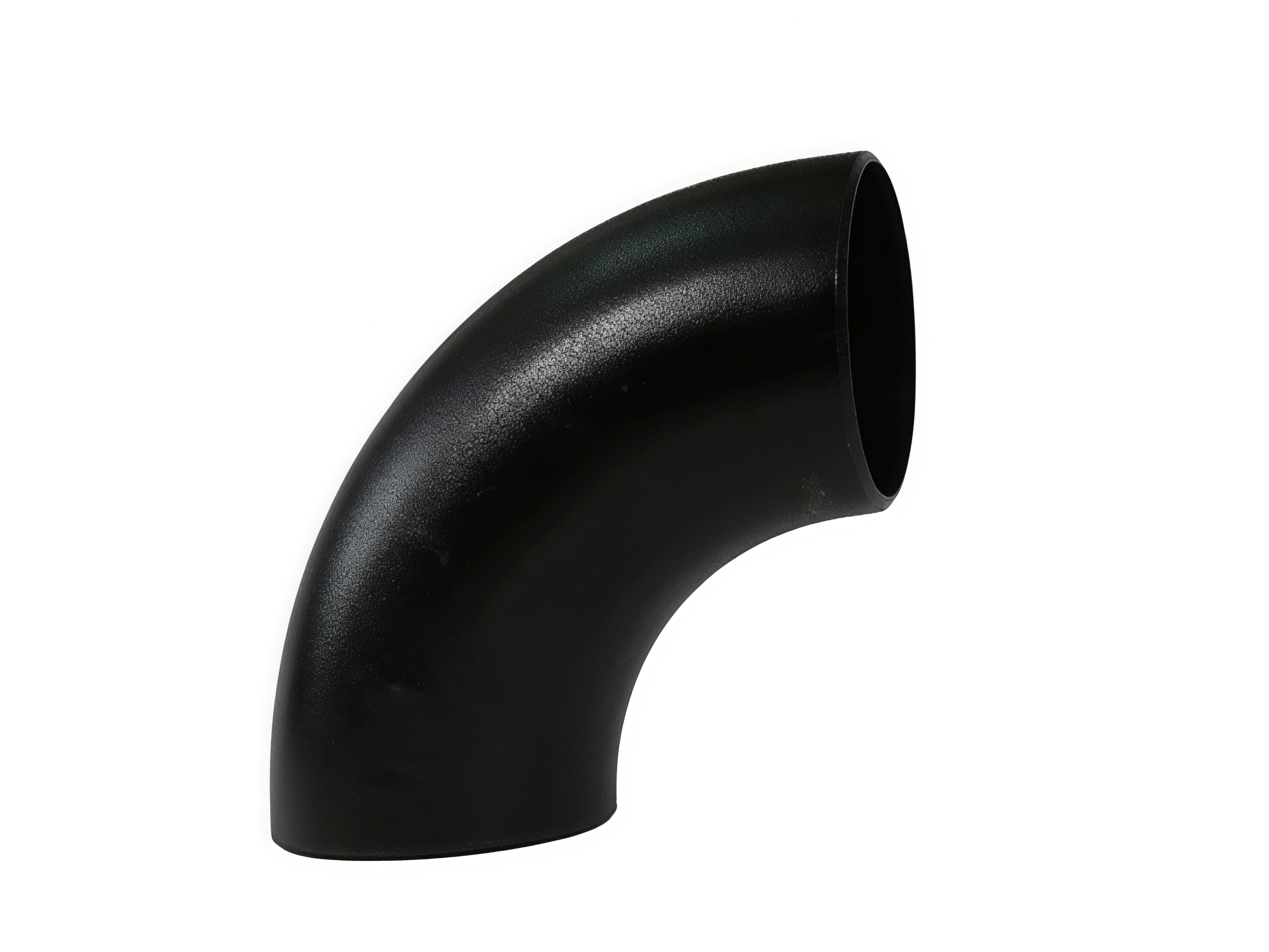

The 90° Elbow is a core piping fitting designed to achieve a 90° change in direction within a pipeline system. It comes in two specifications: Long Radius (LR) and Short Radius (SR). With a smooth inner wall and low flow resistance, it ensures stable and efficient fluid transportation.

It is suitable for various industrial conditions including high temperature, high pressure, and corrosive media, and supports custom manufacturing.

Application Fields: Widely used in petroleum, chemical, oil and gas transportation, power and energy, metallurgy, shipbuilding, pharmaceutical, heating systems, and long-distance pipelines. Ideal for demanding applications involving steam, petroleum products, gases, flammable and explosive media, and corrosive substances.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Item	Specification
Product Size:	DN15–DN1200 (1/2″–48″) and other common specifications, customizable
Pressure Rating	2mm–50mm / SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN
Manufacturing Standards	Compliant with GB, ANSI, DIN, JIS and other international standards
Material	Carbon steel, stainless steel, alloy steel, pipeline steel, low-temperature steel, duplex steel, etc.
Surface Treatment	Pickling and passivation, anti-rust oil coating, painting, hot-dip galvanizing, sandblasting, etc., as per customer requirements
Origin:	China
Connection Type	Butt-welded
Temperature Range	-50℃ ~ +450℃ (specific temperature resistance depends on material and application conditions)
