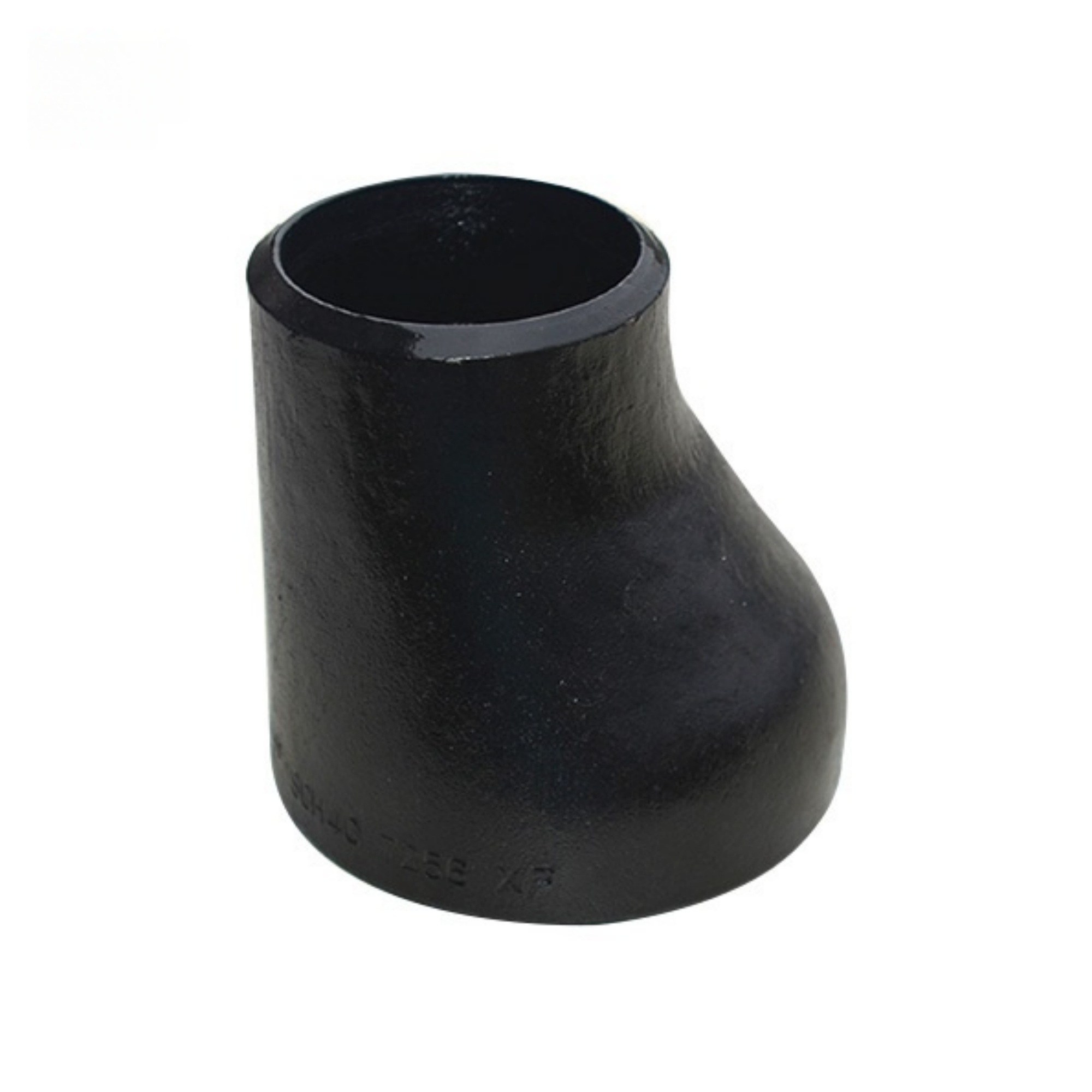

The Eccentric Reducer is a core piping fitting used to connect pipelines of different diameters, with the center points of both ends not aligned on the same axis. This design keeps one side of the pipe wall straight during the diameter change, effectively preventing liquid accumulation in the pipeline.

It is suitable for a wide range of harsh industrial conditions, including high temperature, high pressure, and corrosive media, and supports custom manufacturing.

Application Fields: Widely applied in petroleum, chemical, oil and gas transportation, power and energy, metallurgy, shipbuilding, pharmaceutical, heating systems, and long-distance pipelines. Ideal for demanding applications involving steam, petroleum products, gases, flammable and explosive media, and corrosive substances—particularly in scenarios requiring prevention of liquid pooling, maintaining smoother flow, and ensuring effective drainage in horizontal pipelines.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Item	Specification
Product Size:	DN15–DN1200 (1/2″–48″) and other common specifications, customizable
Pressure Rating	2mm–50mm / SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN
Manufacturing Standards	Compliant with GB, ANSI, DIN, JIS and other international standards
Material	Carbon steel, stainless steel, alloy steel, pipeline steel, low-temperature steel, duplex steel, etc.
Surface Treatment	Pickling and passivation, anti-rust oil coating, painting, hot-dip galvanizing, sandblasting, etc., as per customer requirements
Origin	China
Connection Type	Butt-welded
Temperature Range	-50℃ ~ +450℃ (specific temperature resistance depends on material and application conditions)
