PRODUCT PARAMETERS

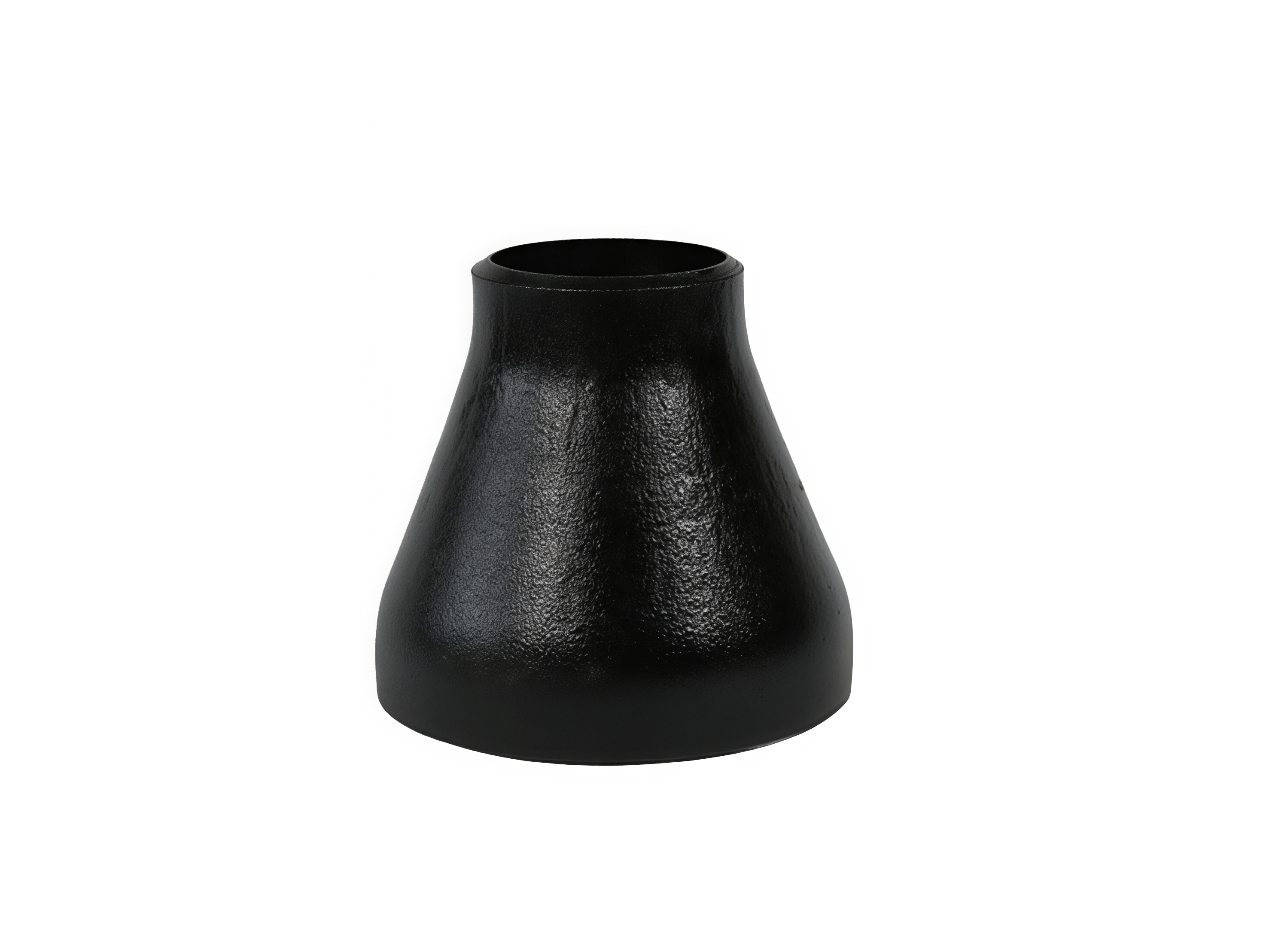

The Concentric Reducer is a core piping fitting designed to connect pipelines of different diameters, with both ends’ center points aligned on the same axis. This geometry ensures a smooth and symmetrical transition of fluid at the diameter change, minimizing turbulence and maintaining flow efficiency.

It is suitable for a wide range of industrial conditions, including high temperature, high pressure, and corrosive media, and supports custom manufacturing.

Application Fields: Extensively used in petroleum, chemical, oil and gas transportation, power and energy, metallurgy, shipbuilding, pharmaceutical, heating systems, and long-distance pipelines. Ideal for demanding applications involving steam, petroleum products, gases, flammable and explosive media, and corrosive substances—particularly in scenarios requiring symmetrical diameter transitions and uniform fluid flow.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Item	Specification
Product Size:	DN15–DN1200 (1/2″–48″) and other common specifications, customizable
Pressure Rating	2mm–50mm / SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN
Manufacturing Standards	Compliant with GB, ANSI, DIN, JIS and other international standards
Material	Carbon steel, stainless steel, alloy steel, pipeline steel, low-temperature steel, duplex steel, etc.
Surface Treatment	Pickling and passivation, anti-rust oil coating, painting, hot-dip galvanizing, sandblasting, etc., as per customer requirements
Origin	China
Connection Type	Butt-welded
Temperature Range	-50℃ ~ +450℃ (specific temperature resistance depends on material and application conditions)

FAQs

What types of products can we offer?
