PRODUCT PARAMETERS

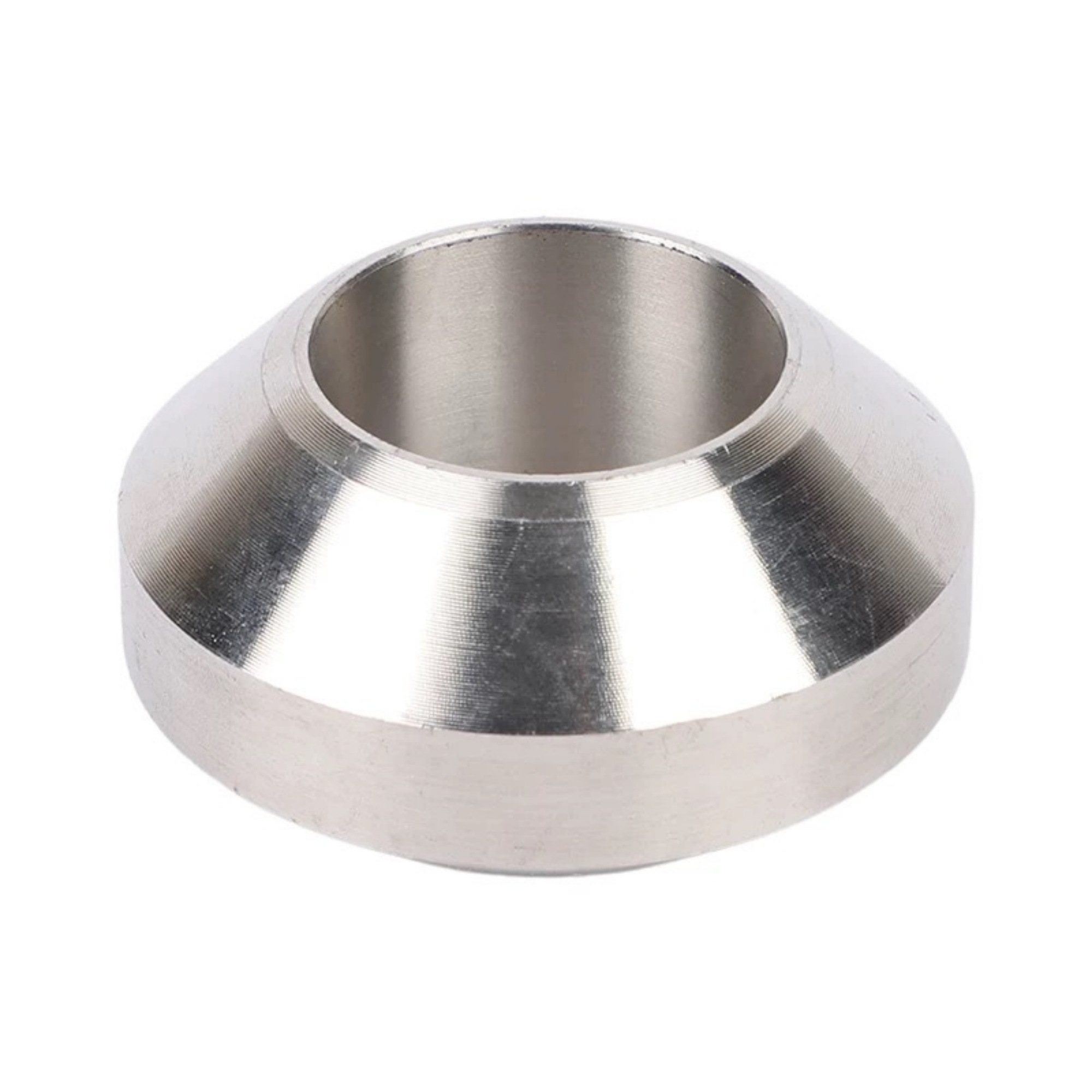

The Butt Weld Branch Outlet is a key forged fitting in high-pressure piping systems for branch connections. It features an integral forged structure and connects to both the main pipe and branch pipe via butt welding, forming a high-strength, high-sealing branch interface on the main pipe.

This design effectively distributes stress and prevents strength reduction after drilling into the main pipe. It is suitable for demanding industrial conditions involving high pressure, high temperature, and corrosive media. Full specification customization is available.
Application Fields:

Widely applied in industries such as petroleum, chemical, oil & gas transportation, electric power and energy, metallurgy, shipbuilding, pharmaceuticals, heating supply, and long-distance pipelines. Suitable for harsh working conditions involving steam, oil products, gases, flammable and explosive substances, as well as corrosive media. It serves as an economical and efficient solution for pipeline extension and transition connections in medium- and low-pressure piping systems.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Item	Specification
Product Size	DN6-DN100 (1/8″ 4″) and other common specifications, customization availat
Pressure Rating	PN2.5-PN400 / CLASS150, CLASS300, CLASS600, CLASS900, CLASS1500, CLASS
Manufacturing Standard	Compliant with international standards such as GB, ANSI, DIN, JIS
Material	Carbon steel, stainless steel, alloy steel, low-temperature steel, duplex steel, etc
Surface Treatment	Pickling & passivation, oil coating for rust prevention, paint, hot-dip galvanizing
Origin	Made in China
Connection Type	Socket weld
Temperature Range	-50°C ~ +450°C (specific temperature resistance range subject to material andapplication conditions)
